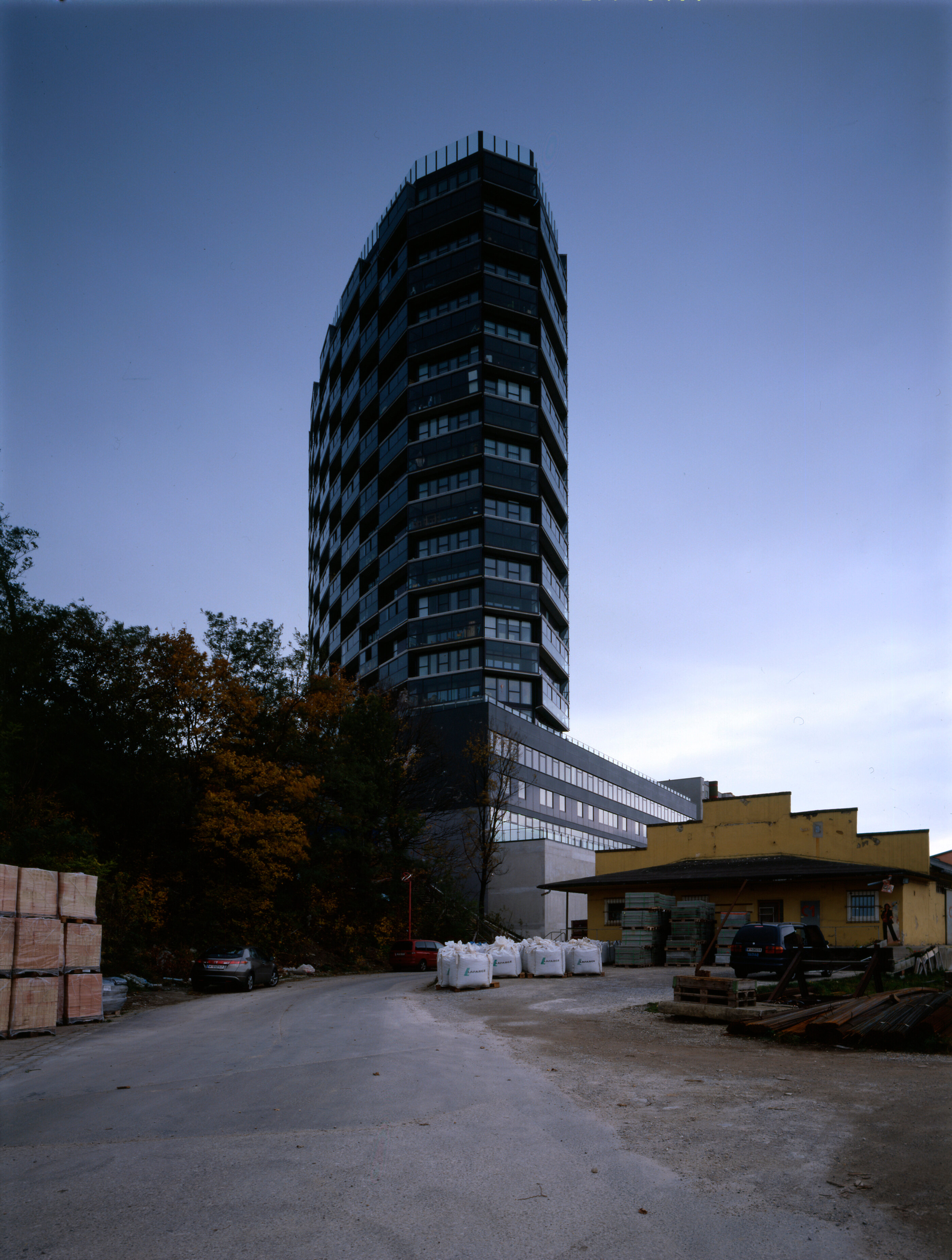

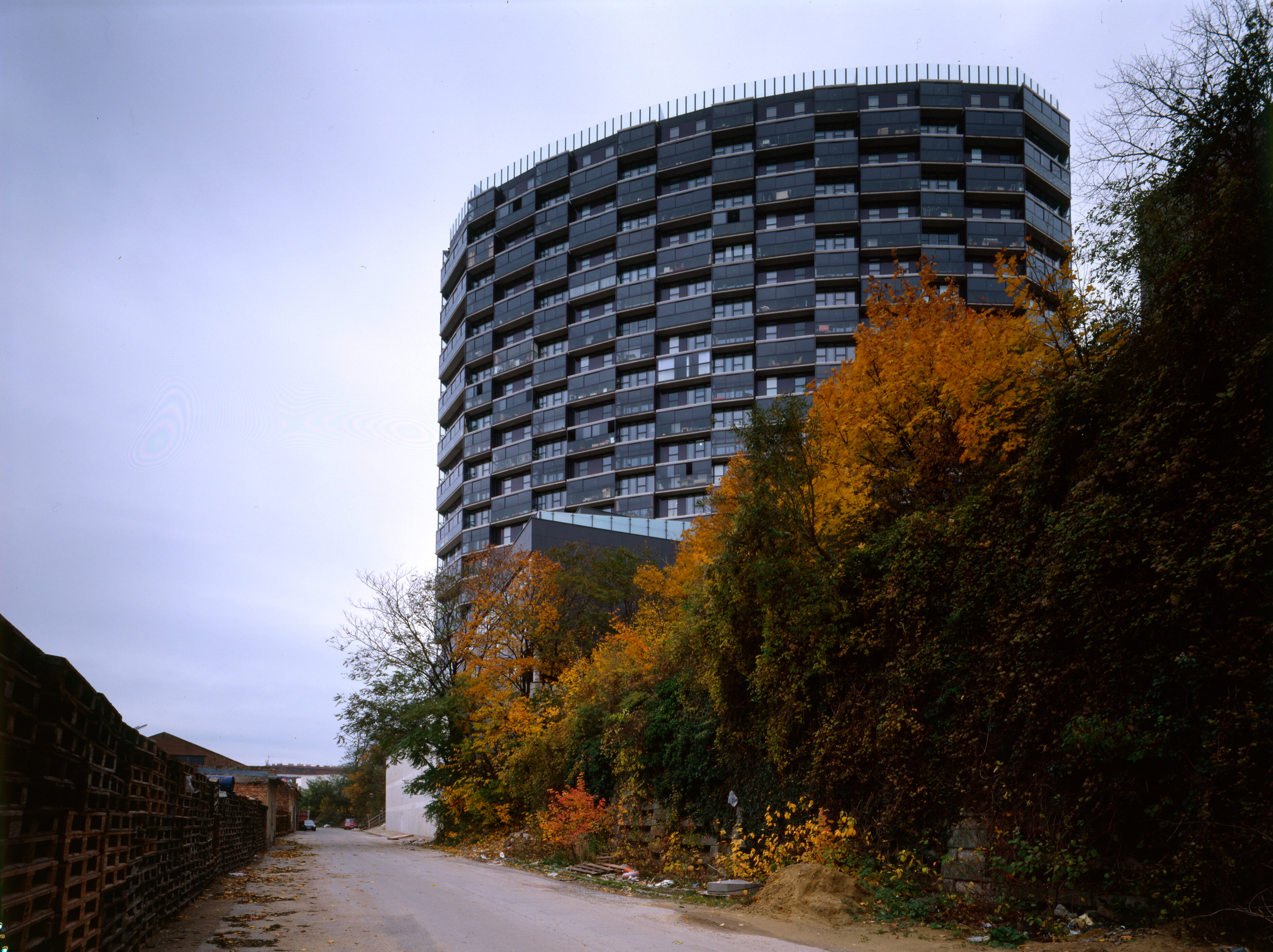

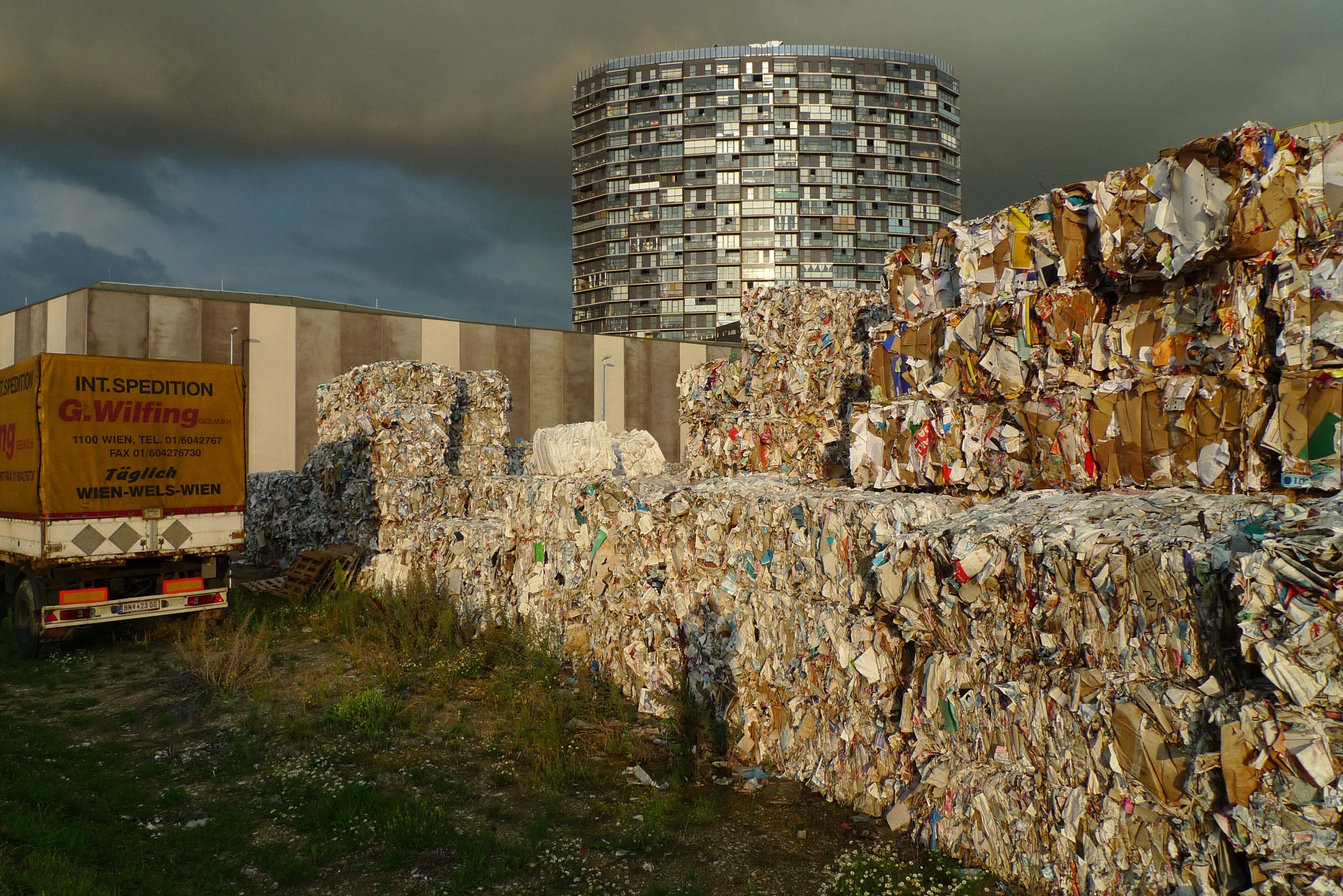

K6, high-rise on Kundratstraße

Vienna 10

2007

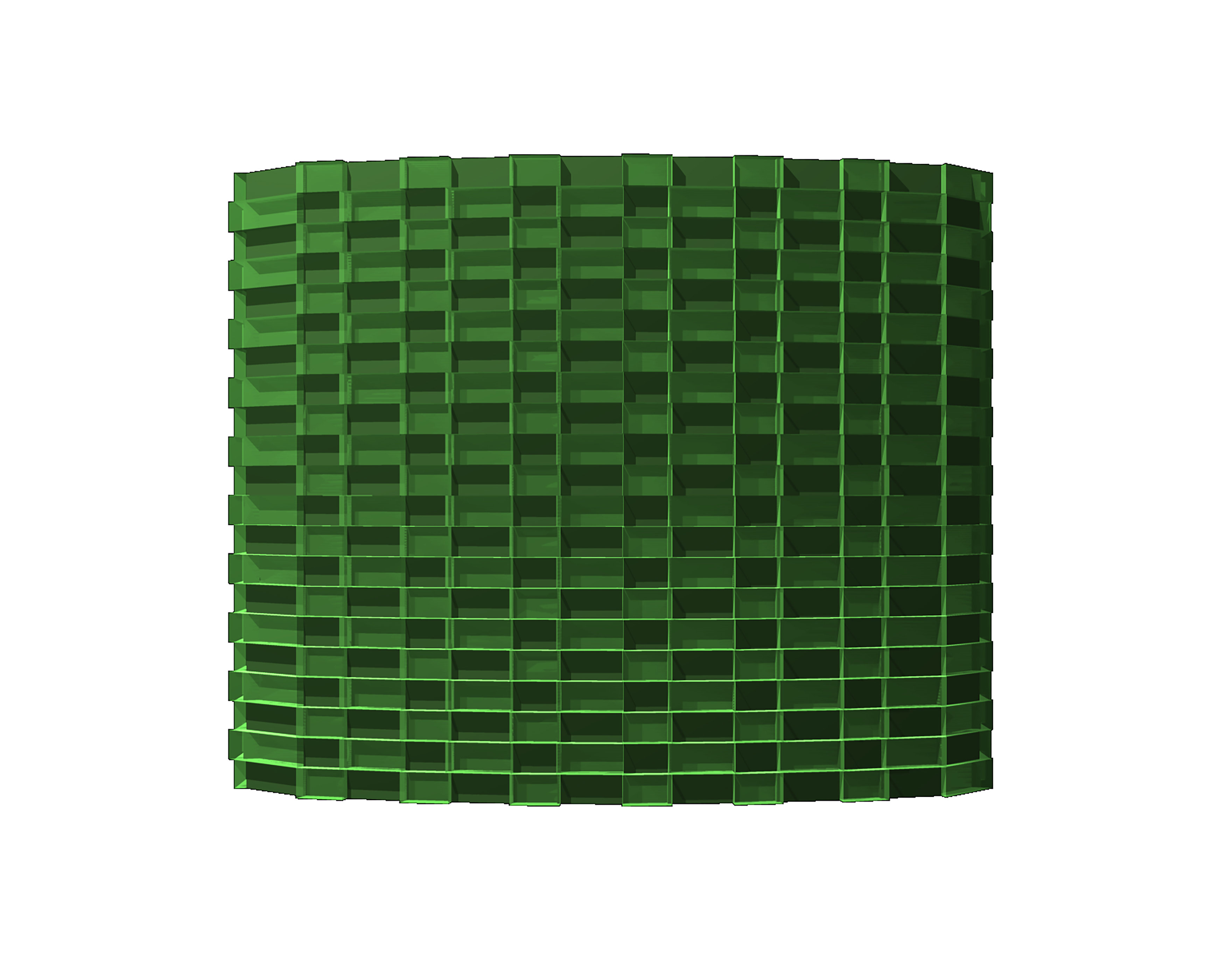

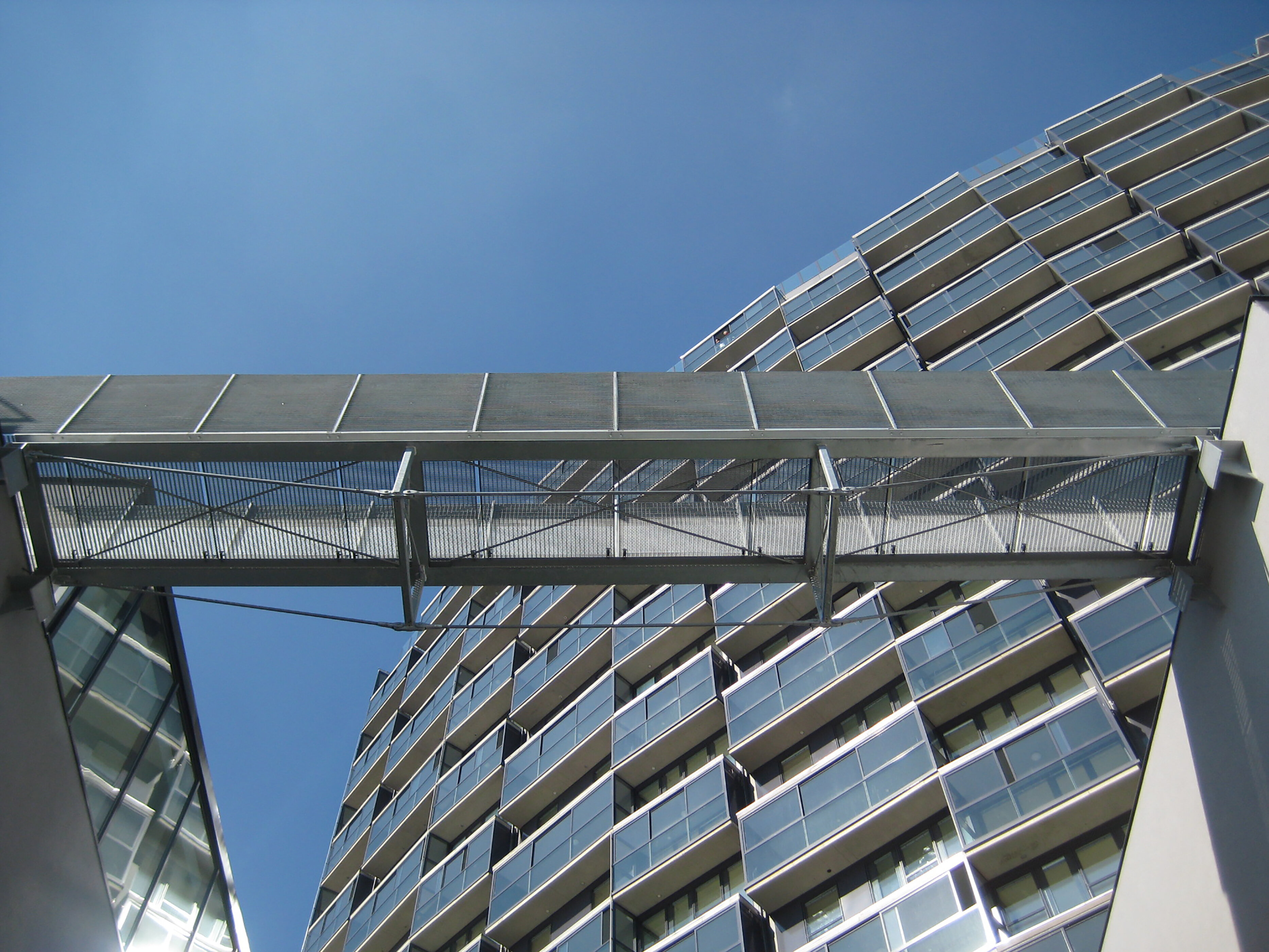

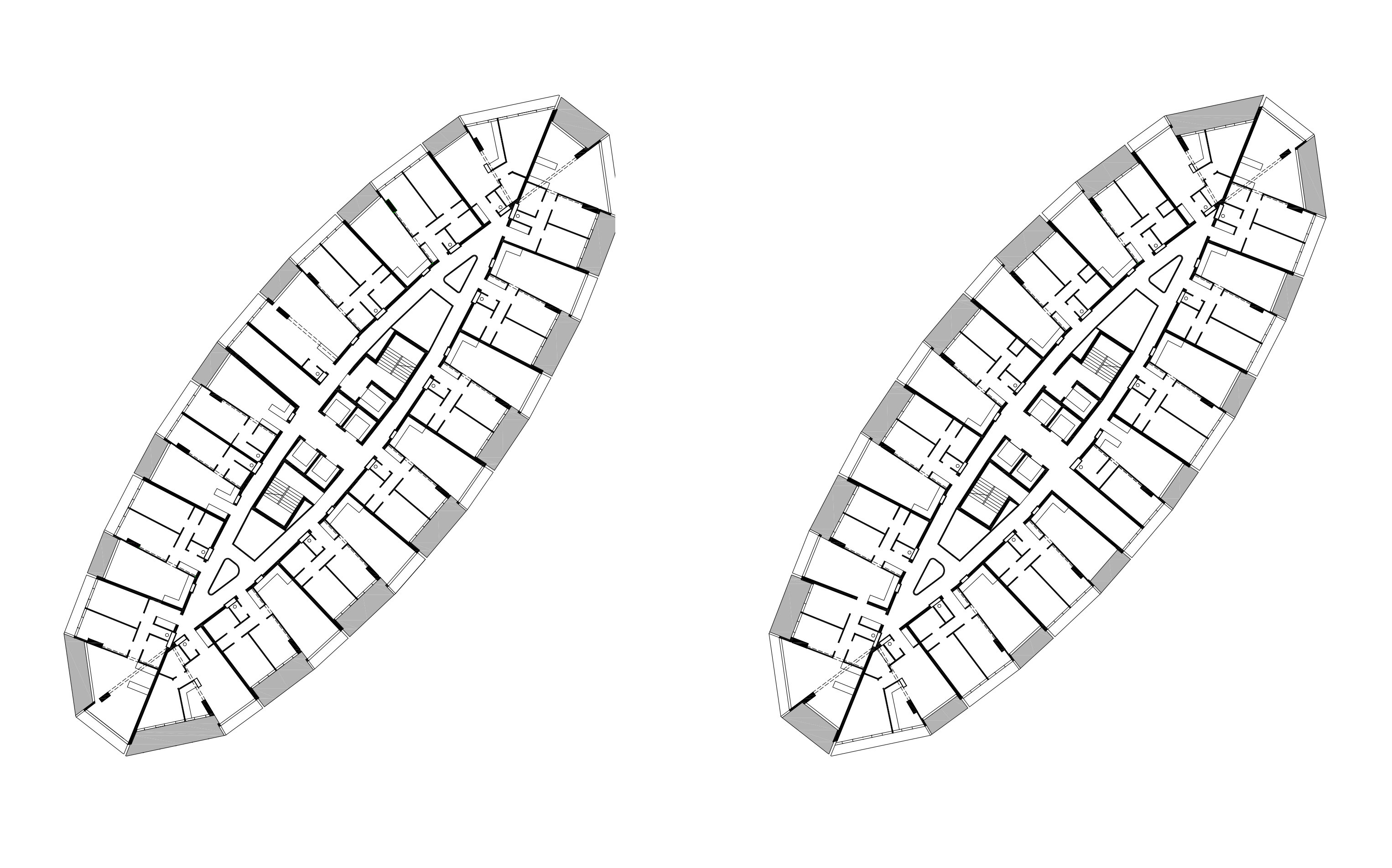

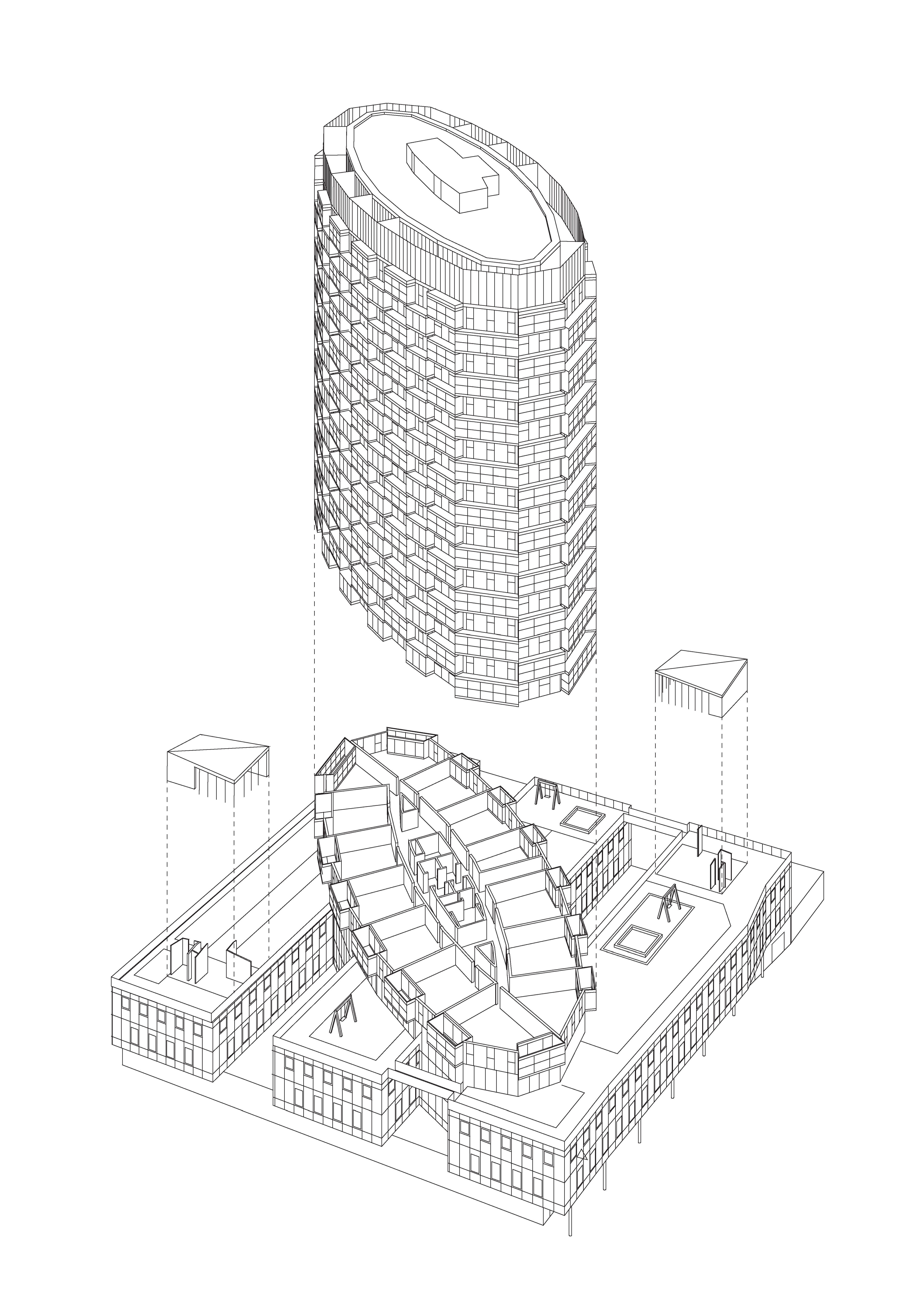

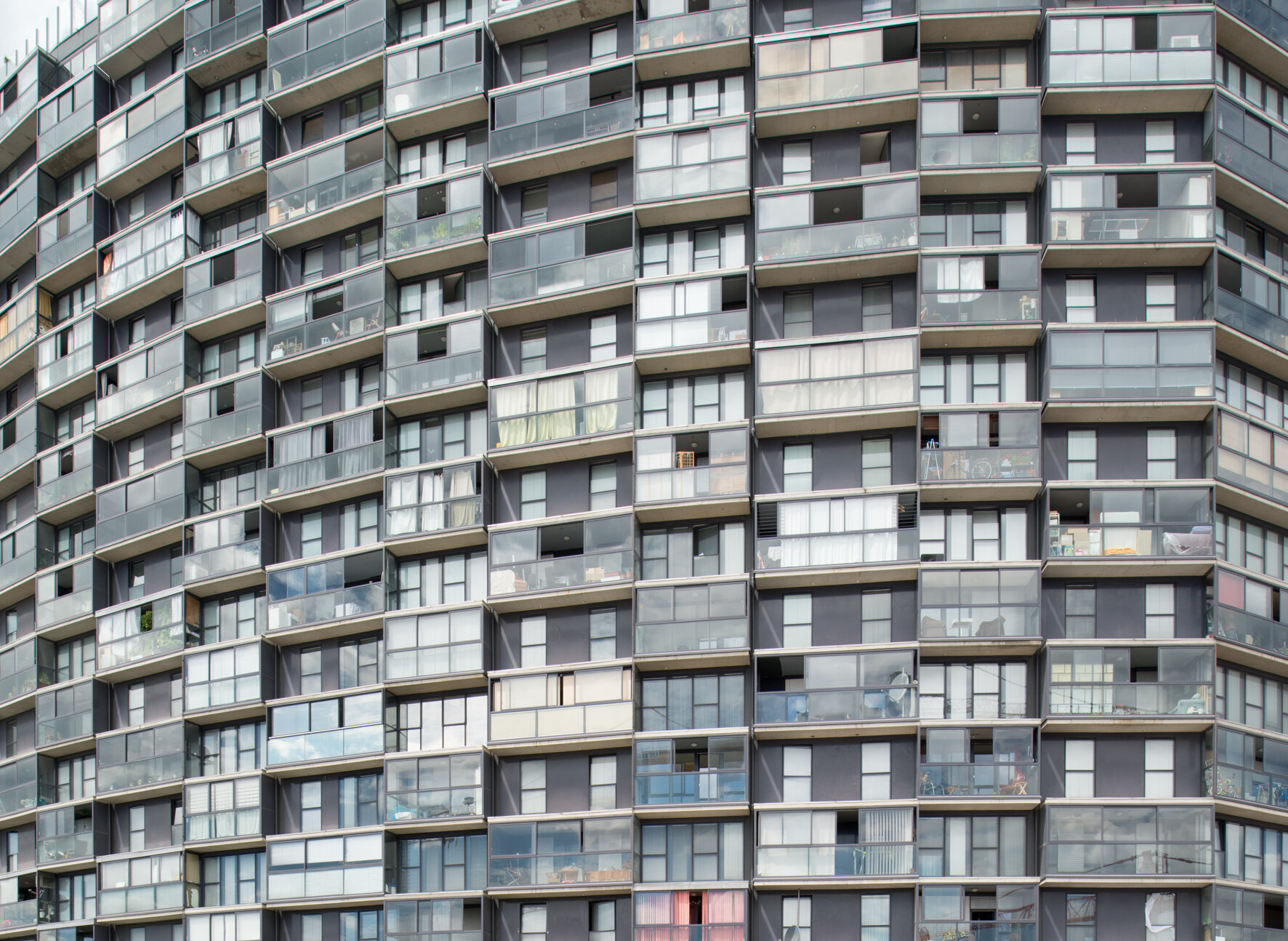

The zoning prescribed elliptical building massing. It stipulated a 70-meter longitudinal axis and a 26-meter cross axis. By working with glazed loggias staggered from floor to floor, we interpreted and shaped the structure three-dimensionally as a residential tower. The loggia mesh is like a chain bracelet slipped on the high-rise wrist. The two different ways the loggias are positioned determine the apartments’ floor plans.

client:
GPA

ARTEC Architekten

together with NEUMANN + Partner

Team ARTEC Architekten:
Bettina Götz and Richard Manahl
Ronald Mikolics
visuals: Ivan Zdenkovic, Wolfgang Beyer

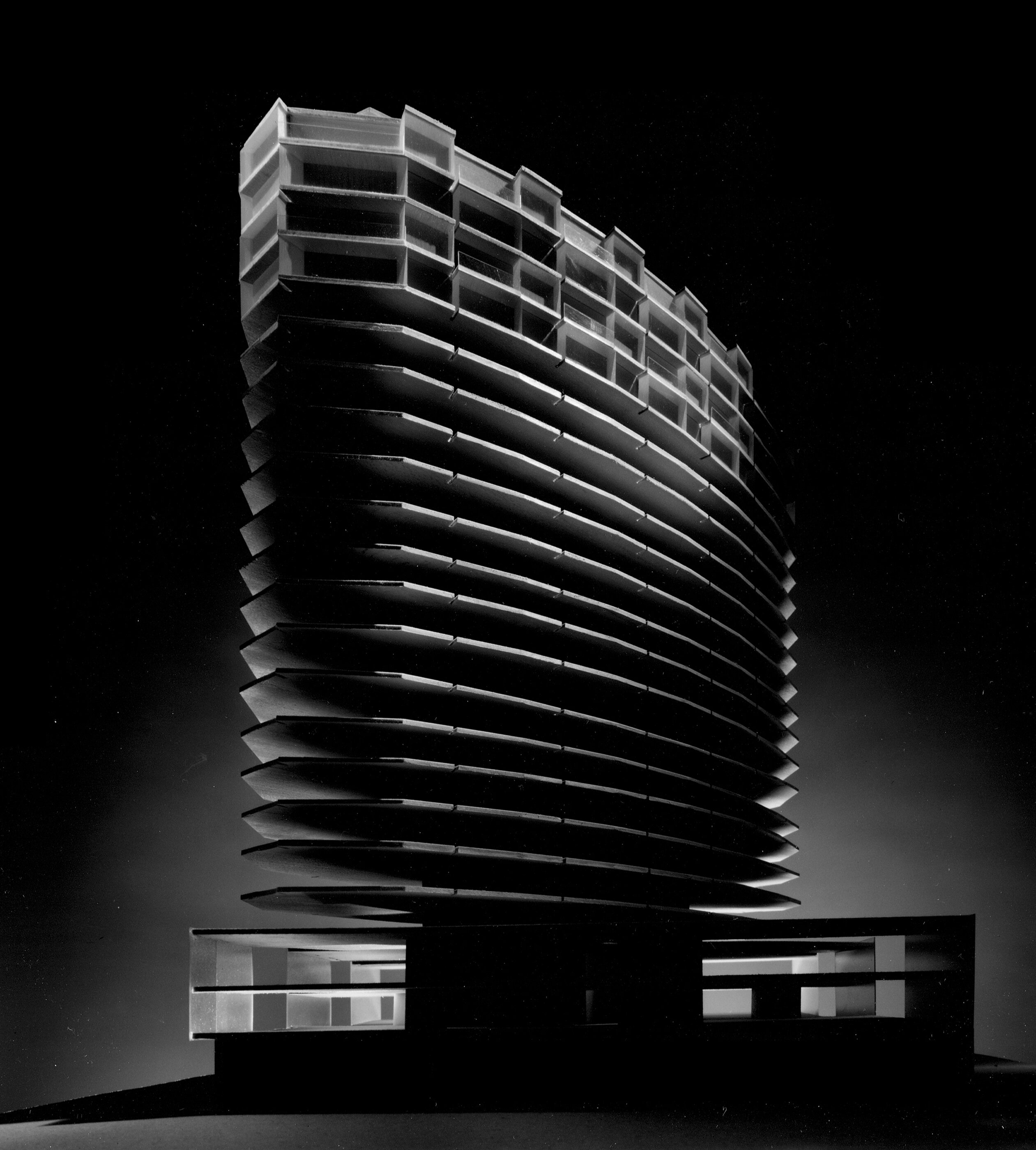

models: Julia Beer, Anna Wolf

photography:
Gerald Zugman
Lukas Schaller
ARTEC Architekten (models)

bottom arrow

general planning: Schwalm-Theiss & Gressenbauer, Vienna

structural engineering: FCP, Vienna
building services planning: Euro-Tec, Salzburg/Vienna
electrical planning: TB Gruber, Kirchberg am Wechsel
building physics: Dr. Pfeiler GmbH, Graz

start of planning: 2003
start of construction: 2005
completion: 2007

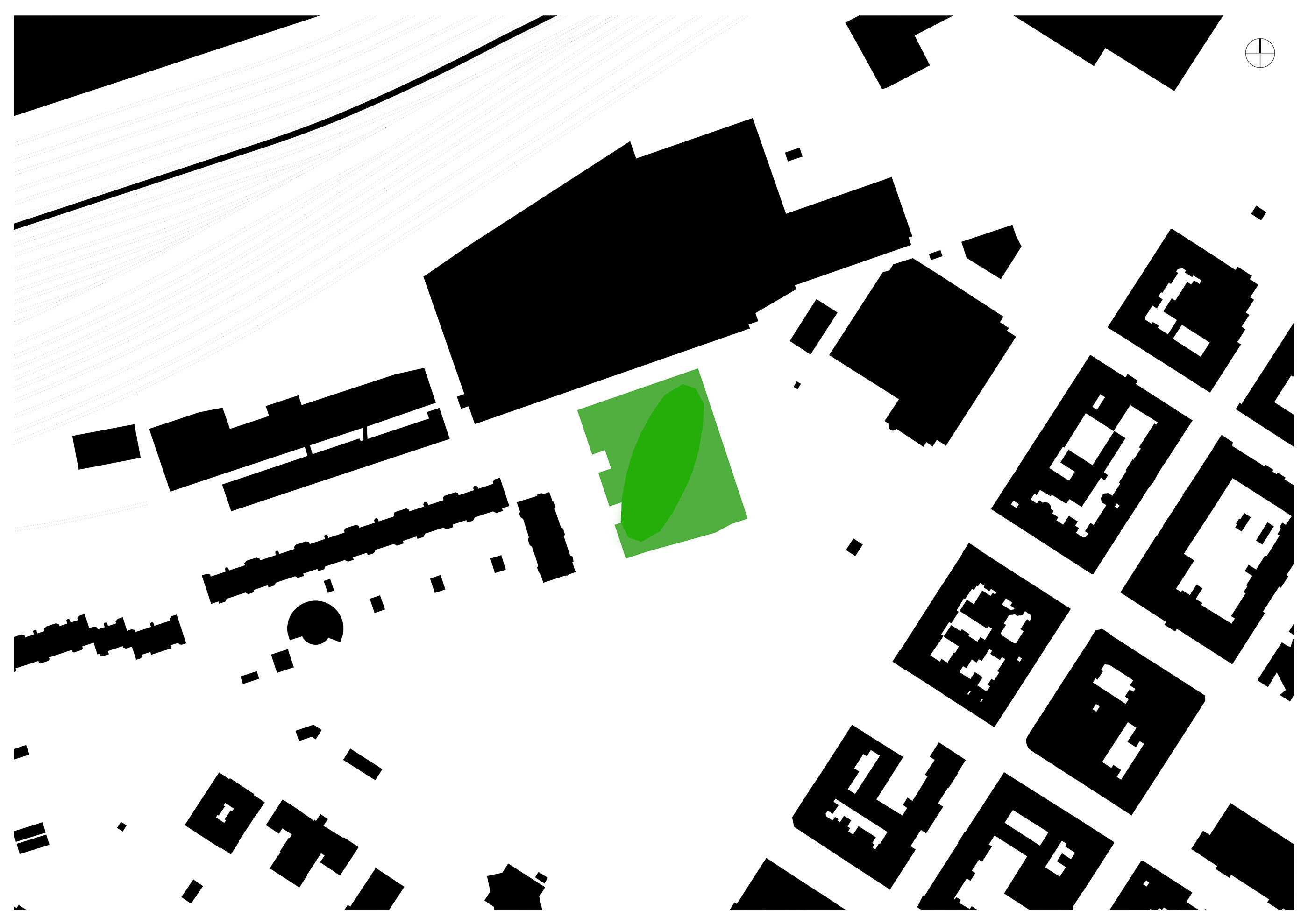

plot area: 4345 m²
built-up area: 3946 m²
gross floor area: 53.477 m²
total gross floor area above-ground.: 40.496 m²
building density: 9,32
total effective floor area: 29.560 m²
office and commercial space - effective floor area: 8.050 m²
flats-  effective floor area : 21.510 m²
enclosed space:  174.450 m³

4 basement storeys, ground floor, 21 upper storeys, 1 attic
building hight over 0.00 (entrance level):  67.50 m
number of flats: 275
underground parking:  387 parking lots
